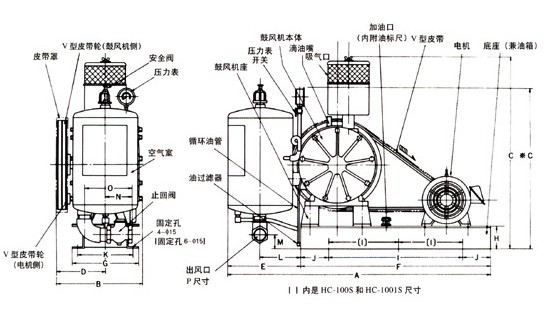

回轉鼓風機外形尺寸數據
（單位：mm）
| 型號 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
| HC-25S | 710 | 255 | 445 | 145 | 200 | 510 | 170 | 80 | 410 | 50 | 130 | 120 | 30 | 65 | 115 |
| HC-30S | 690 | 255 | 450 | 145 | 180 | 510 | 170 | 80 | 410 | 50 | 130 | 100 | 30 | 80 | 130 |
| HC-301S | 730 | 265 | 450 | 150 | 180 | 510 | 170 | 80 | 410 | 50 | 130 | 100 | 30 | 80 | 130 |
| HC-40S | 795 | 305 | 500 | 190 | 170 | 600 | 230 | 80 | 400 | 100 | 190 | 80 | 40 | 100 | 155 |
| HC-401S | 800 | 310 | 500 | 190 | 170 | 600 | 230 | 80 | 400 | 100 | 190 | 80 | 40 | 100 | 155 |
| HC-50S | 1010 | 345 | 600 | 213 | 210 | 800 | 265 | 80 | 600 | 100 | 225 | 100 | 90 | 90 | 160 |
| HC-501S | 1010 | 350 | 600 | 218 | 210 | 800 | 265 | 80 | 600 | 100 | 225 | 100 | 90 | 90 | 160 |
| HC-60S | 1180 | 385 | 730 | 230 | 330 | 850 | 300 | 100 | 600 | 125 | 260 | 185 | 60 | 95 | 185 |
| HC-601S | 1180 | 390 | 730 | 235 | 330 | 850 | 300 | 100 | 600 | 125 | 260 | 185 | 60 | 95 | 185 |
| HC-80S | 1325 | 440 | 870 | 260 | 325 | 1000 | 350 | 100 | 700 | 150 | 310 | 180 | 65 | 140 | 235 |
| HC-801S | 1325 | 445 | 870 | 265 | 325 | 1000 | 350 | 100 | 700 | 150 | 310 | 180 | 65 | 140 | 235 |
| HC-100S | 1520 | 555 | 955 | 320 | 420 | 1100 | 470 | 140 | 400 | 150 | 410 | 245 | 70 | 150 | 270 |
| HC-1001S | 1520 | 560 | 955 | 325 | 420 | 1100 | 470 | 140 | 400 | 150 | 410 | 245 | 70 | 150 | 270 |
